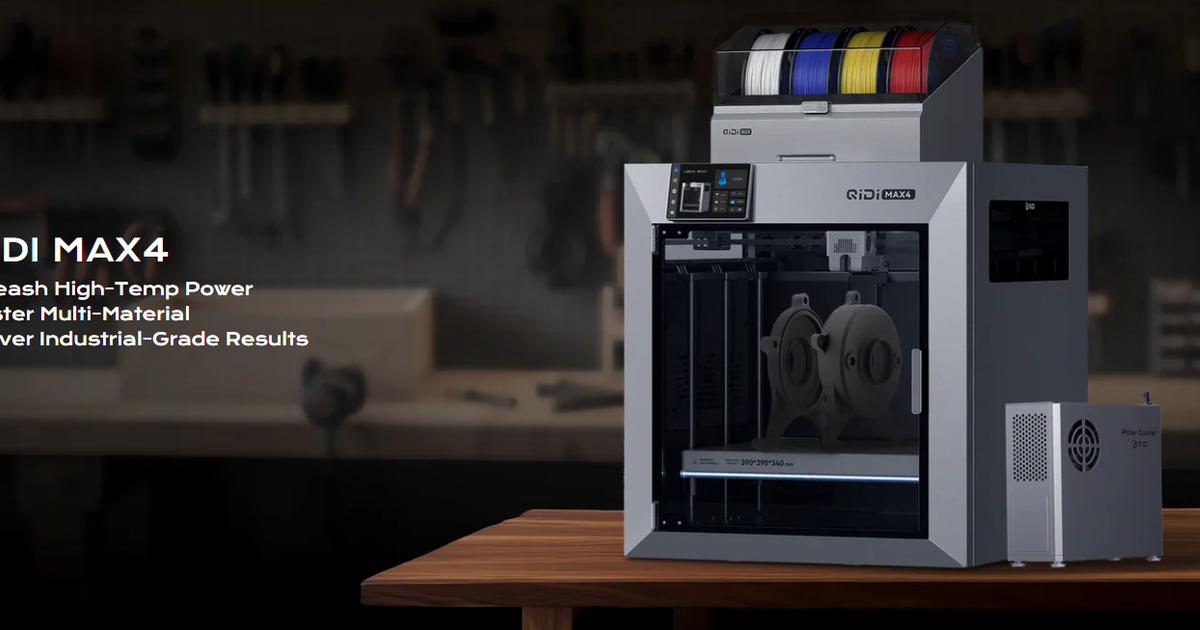

QIDI Max4: A New Normal for Massive Enclosed Desktop Printers
The heated mattress can also be very properly made. It makes use of a full silicone layer with many heating wires positioned shut collectively. This helps the mattress warmth evenly from edge to edge. Robust insulation underneath the mattress retains the temperature regular. This offers higher first-layer grip and helps cease warping on massive prints.
The Max4 additionally comes with a high-flow hotend that may push forty cubic millimeters of fabric per second. This allows you to print sooner whereas nonetheless conserving good element. The hardened metal nozzle can deal with frequent filaments like PLA and ABS, in addition to harder choices resembling carbon fiber nylon.
QIDI additionally introduces its new Energetic Toolhead Cooling System, known as the Polar Cooler. It sends cool air on to the extruder and the filament path. This helps stop clogs and retains temperatures underneath management. Together with it, the second-generation Energetic Chamber Heating system retains the chamber heat as much as 65°C. This makes printing high-temperature supplies like ABS, ABS-CF, and PC a lot simpler and extra secure.
QIDI Max4: Stability and Precision Taken Additional
To ship cleaner surfaces and fewer artifacts, the Max4 makes use of a closed-loop motor system on the XY axis. This main improve brings three key benefits:
- Higher
Stability: The system prevents step loss by monitoring encoder errors in a closed loop and immediately compensating for deviations, thereby
considerably lowering layer misalignment.
- Improved accuracy: Decreased torque ripple leads to smoother movement and fewer seen floor imperfections.
- Greater effectivity: The motors run cooler and quieter, bettering longevity and reliability.
The Z axis additionally sees a big refinement with 2 mm lead screws and an anti-backlash nut. Collectively, they remove vertical play, enhance Z-axis accuracy, and produce cleaner surfaces on tall prints.
Extra pro-grade options embody an up to date auto-leveling system, industrial linear rails, and customized 1.5GT belts. All mixed, they kind a strong movement platform constructed for long-term precision.
QIDI Max4: Smarter Design, Simpler Workflow
A quick processor powers the Max4’s new AI system. With its built-in HD digital camera, the printer watches the print in actual time. It appears for frequent issues like spaghetti or damaged helps. If it finds one thing flawed, it pauses the print and sends an alert. This helps save time and materials.
The brand new interface is simpler to make use of, and the bigger display makes the controls really feel smoother. The Max4 additionally works with the QIDI BOX, which provides multi-color and multi-material printing. It could actually use as much as sixteen colours and may dry filament at as much as 65°C.
Due to its sturdy warmth management, strong {hardware}, and broad materials help, the Max4 can deal with many kinds of tasks. It really works properly for engineering elements, detailed prototypes, or colourful inventive fashions.
Fast Specs Abstract

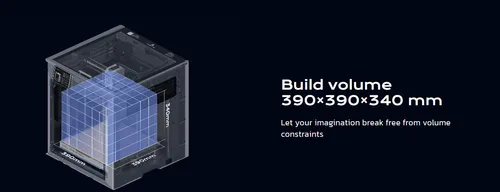

- Construct quantity: 390 × 390 × 340 mm
- Heated mattress: Full-surface silicone thermal layer with uniform heating and insulation
- Hotend stream price: 40 mm³/s
- Nozzle: Hardened metal, helps PLA, ABS, CF-reinforced supplies
- Chamber heating: As much as 65°C
- Cooling system: Polar Cooler lively toolhead cooling
- Movement: Closed-loop XY motors, 2 mm lead screws on Z, anti-backlash nut
- Extra {hardware}: Auto-leveling sensor, industrial linear rails, 1.5GT belts
- AI options: Actual-time print monitoring with an HD digital camera and computerized pause
- Multi-material: QIDI BOX help for as much as 16 colours with 65°C filament drying
